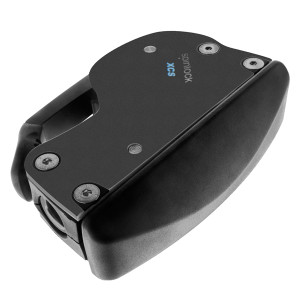

Spinlock XCS Clutch, 6-10mm Line, Black - Side Mount Port
Spinlock
$626.56
The XCS clutch offers a range of quality finished to match your deck or rig.
- Aluminium sides for sustained higher load operation
- Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
- Mid to higher load rope holding
- Reliable all around performance
- Available in white coated, black anodised or silver polished alloy
- XCS0610 for best performance on smaller diameter lines
- Ceramic Coated CAM and Base available for consistent holding & performance on modern lines
- Extruded alloy handle with soft end grip
- Secure handle locking in open and closed position
- Easy access to fasteners
- Handle labels supplied

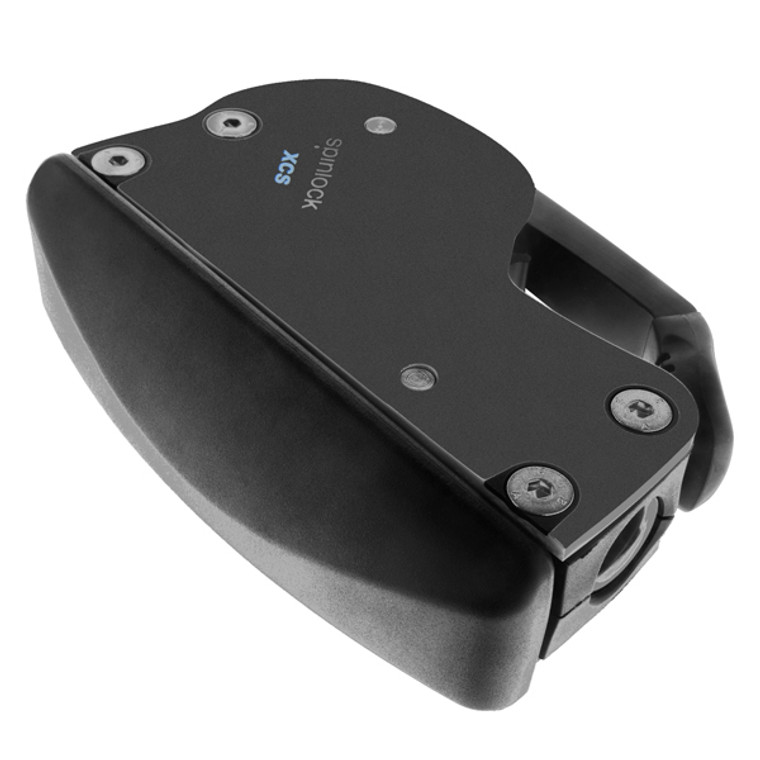

Part Number: XCS0610/HPB - Side Mount Port, Black
Specifications:
- Lines: 6mm - 10mm (1/4" - 3/8")
- Loads up to 1000kg (2200lbs)
- Weight: 630g (22.1oz)
- Fasteners: 2 x M8 (5/16") CSK Head (not supplied)
XCS0610 - Small diameter, high load
- For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line. To upgrade from XCS0814, fit CAM-0610
Side Mounting
- Side mounting is usually the neatest solution for spars, side decks and coamings
