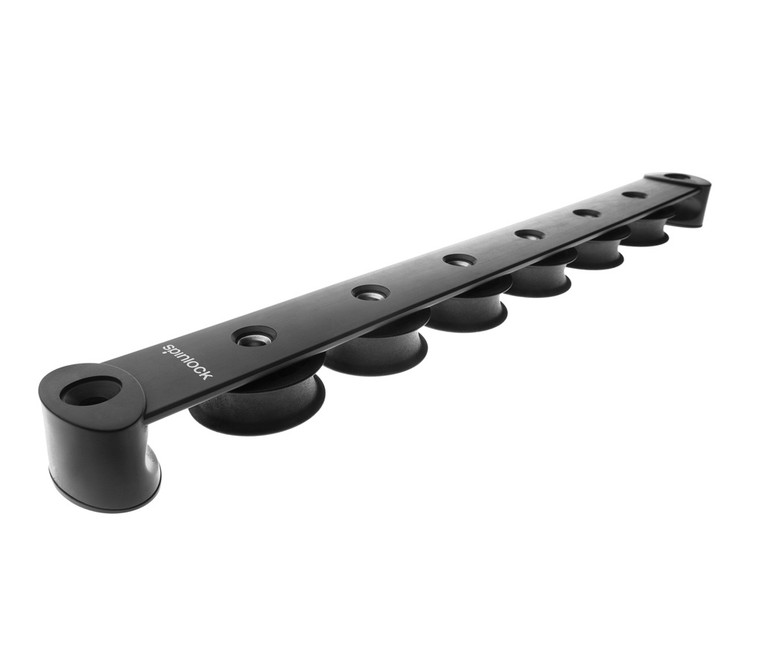

Spinlock 50mm, 6 Sheave Deck Organiser - Standard (SPT50/6)

Spinlock 50mm, 6 Sheave Deck Organiser - Standard/Asymmetric

Spinlock
SKU:
SPT50/6
|
UPC:
5025138420808
$215.08
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

T-Series organisers lead multiple lines back from the mast to banks of power clutches.

  • Minimal overall length
  • Efficient bearings surface reduces winch effort and increases halyard life
  • Integral end fairings for safe side loading
  • Asymmetric version reduces deck footprint and saves weight
  • T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
  • Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted

Available options

  • Standard (T50/6)
  • Asymmetric (T50/6Y)

Part Number: T50/6, T50/6Y

Specifications

  • Sheave Diameter/Type: 50mm (2") composite
  • SWL per sheave: 1000kg (2200lbs)
  • Total SWL per unit: No of sheaves x500kg (1100lbs)
  • Line Diameter: Up to 14mm (9/16")

Weight

  • 185g (6.5oz) for 2 sheave organiser
  • 45g (1.6oz) per extra sleeve

Fasteners

  • 2x M6 (1/4") CSK (not supplied)
