Selden Roller Bearing Block 60mm Cheek
Selden
$369.51
(No reviews yet)
Write a Review
Selden

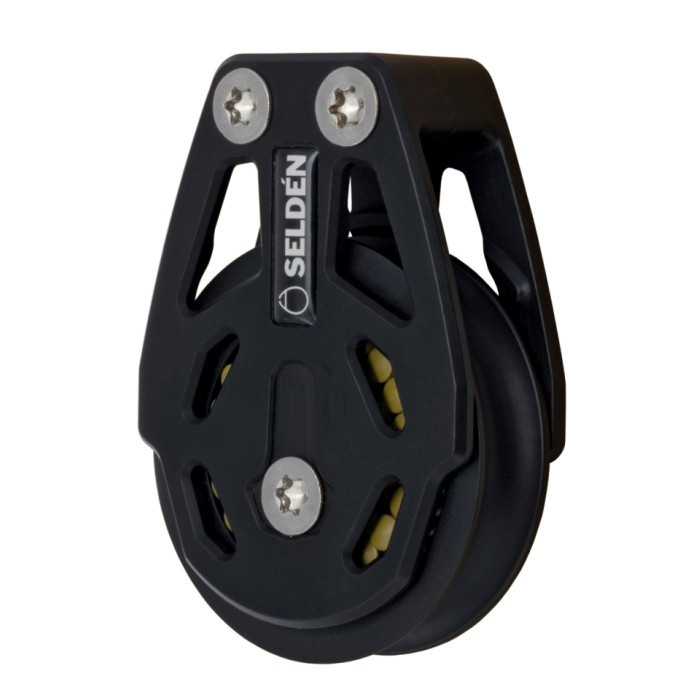

Selden Roller Bearing Block 60mm Cheek
Low resistance at high, dynamic loads is the main characteristic of Seldén Roller Bearing Blocks (RBB). The ability to easily release a highly loaded backstay tackle, a main sheet, a spinnaker halyard or a kicker tackle makes for fast, safe and uncomplicated maneuvers. You will find yourself focusing on what really matters - Boat speed.
Features
- Torlon rollers
- Insulating washer
- Acetal ball bearings stabilize the sheave when subjected to side loads
- Machined, black anodised aluminium sheave
Shackle Details
- RBB60: 6 mm body
- Set screw. Switching from swiveling to fixed shackle.
- Machined, black anodised aluminium cheeks.
- Swivel pin is hollow to reduce weight
- RBB60: 8 mm pin
Technical Features
- Designed for high load, dynamic applications.
- Machined, black anodised aluminium cheeks and Torlon® roller bearings.
- PA washer insulates stainless from aluminium to prevent corrosion.
- The shackle features a Ø 6 mm body and Ø 8 mm pin, a strong and lightweight combination.
- The swivel pin is hollow and chamfered to reduce weight.
- Acetal ball bearing stabilize the sheave when subjected to side loads.
Specifications
Part# 406-201-07R - RBB60 Cheek
- Weight: 195.00 g
- Breaking Load: 3000 kg
- Safe working Load: 1500 kg
- System: RBB60
- Max line size: 12 mm
- Upper breaking load: kN
- Upper safe working load: kN
- Mounting: 3xM6
