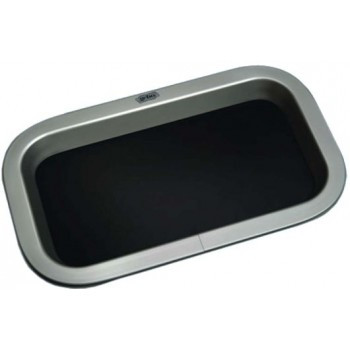

RWB Gebo Standard Rectangular Portlight - Opening
RWB
$803.00 - $1,029.00
(No reviews yet)
Write a Review
RWB
RWB Gebo Standard Rectangular Portlight - Opening
Gebo Standard Rectangular Opening Portlight
GEBO's Standard Portlight Range is their PREMIUM range certified for watertight fitting in the hull - so there is no problem when a heeling yacht encounters the pressure of fast-running water and rough seas. The smooth angled outer frame prevents water collecting on the frame and dripping into the cabin when the port is opened.
The window is made from smoked grey acrylic as standard. Available in fixed or opening style in 4 different shapes.
FEATURES
- GEBO's renowned quality premium range of portlights
- This range is designed for watertight fitting in the hull
- Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability and low maintenance requirements
- 2 year warranty under normal use
- Opening or fixed style portlights available
- Shapes - rectangular, circular ended, round or elliptical
- Mosquito / fly screens & rain shields optional extras
- All GEBO portlights are CE certified
- Multi-Position stepless hinges for flexible opening angles
- Durable 10mm thick smoked grey acrylic panel
- Ports should be fitted to a flat surface - max 1mm tolerance
SPECIFICATIONS
| SKU | Cutout Size mm | Cutout Radius | Overall Size mm | Radius | Acrylic mm | Mosquito Screen | Rainshield |
| RWB6050 | 268 x 141 | 56mm | 293 x 166 | 68mm | 203 x 76 | RWB6150 | |
| RWB6051 | 346 x 141 | 56mm | 371 x 166 | 68mm | 281 x 76 | RWB6151 | |
| RWB6052 | 375 x 175 | 56mm | 400 x 200 | 68mm | 310 x 110 | RWB6152 | RWB6225 |
| RWB6053 | 375 x 215 | 56mm | 400 x 240 | 68mm | 310 x 150 | RWB6153 | RWB6226 |
| RWB6054 | 475 x 255 | 56mm | 500 x 280 | 68mm | 410 x 190 | RWB6154 | RWB6227 |
| RWB6055 | 600 x 175 | 56mm | 625 x 200 | 68mm | 535 x 110 | RWB6155 | RWB6228 |
