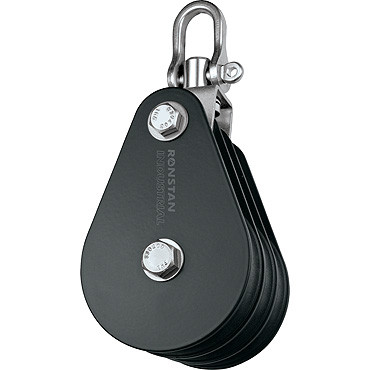

Block, Triple, 75mm Sheave, Swivel Shackle Head (RZ1708)

Ronstan Series 75 Triple Blocks, 75mm Sheave

Ronstan
SKU:
RZ1708 to RZ1710
|
UPC:
9316800479887
$343.85 - $455.60
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RZ1708: Series 75 Industrial Pulley Block, Triple
Series 75, Triple block, swivel shackle head. Black powdercoated 316 stainless steel side plates.

SPECIFICATIONS

    • B.L. (kg) 3000
    • M.W.L. (kg) 1500
    • Max. Rope diameter (mm) 14
    • Weight (g) 1240
    • Pin Ø (mm) 8

RZ1709: Series 75 Industrial Pulley Block, Triple with Becket
Series 75, Triple block, swivel shackle head, becket. Black powdercoated 316 stainless steel side plates.

SPECIFICATIONS

    • B.L. (kg) 3000
    • M.W.L. (kg) 1500
    • Max. Rope diameter (mm) 14
    • Weight (g) 1325
    • Pin Ø (mm) 8

RZ1710: Series 75 Industrial Pulley Block, Triple with Becket and Cleat
Series 75, Triple block, becket, cleat, swivel shackle head. Black powdercoated 316 stainless steel side plates.

SPECIFICATIONS

    • B.L. (kg) 3000
    • M.W.L. (kg) 1500*
    • Max. Rope diameter (mm) 14
    • Weight (g) 1565
    • Pin Ø (mm) 8
    • Notes: Line load through cleat not to exceed 300kg (660lb)

FEATURES

  • Load rated
  • Choice of fixed or swivel head models
  • Durable, low friction acetal polymer sheave
  • Head bolt, single sheave models: 3/8" UNC
  • Head bolt, multi sheave models: 5/16" UNC
  • Becket bolt: 3/8" UNC

PRODUCT INFORMATION

  • Clevis pin shackle version can be ordered as RZxxxC (eg. RZ1708C)

MATERIALS

  • UV stabiised Acetal sheaves
  • Grade 316 stainless steel side plate/cheeks, powder coated black
  • Grade 316 stainless steel head, shackle and becket
  • Fibre reinforced polymer rope cleats
  • Grade 2205 stainless steel clevis pin
