Multiflex Easy Connect Steering Cable
Multiflex
$128.04 - $167.64
(No reviews yet)
Write a Review
Multiflex

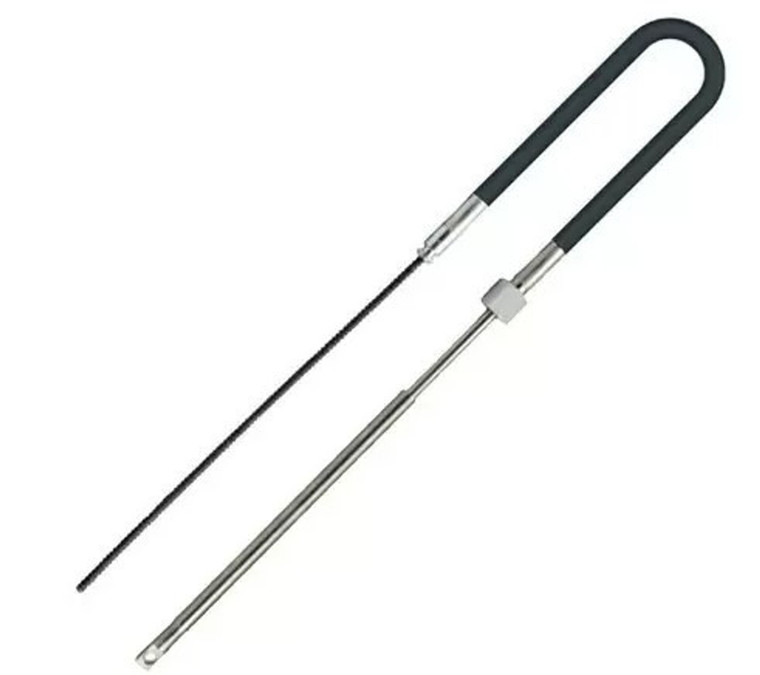

Multiflex Easy Connect Steering Cable
Multiflex - Easy Connect - Mechanical Steering Cables
The Multiflex SC-16-XX cables are a push-pull mechanical cable that converts the rotary motion of the helm to linear motion at the engine/rudder. One end of the cable is connected to the helm and the other end to the rudder.
Steering cable to be used with LM-H-101 / LM-H-102 Helm
Specifications
- Output ends of Stainless Steel
- Maximum Travel : 9inch (230 mm)
- Minimum bend radius : 8 inch (200mm)
- Maximum working load at Tiller end : 5000N (500kg)
- Cable Outer Diameter : 15 mm
- Spiral inner cable Diameter : 8 mm
Features
- High quality weather and abradion resistant outer conduit
- Internally lubricaled helical inner for frictionless movement
- Stainless steel output end fittings
- Stroke of cable: 230mm
- Minimum steering cable bend radius: 200mm
- Maximum working load at tiller end: 5000N (500kg)
- Exceeds ISO 8848 standards. Serial number with manufacturing month and year is marked on the cable for warranty claims
- Works with H1/H1.2/H1N/H3 helms
- Custom lengths available to be special ordered
SC-16-XX Cables are suitable for use within Mechanical Steering Systems
- Planetary 150 Mechanical Steering Systems
- Non-Reaction Planetary 150 Steering Systems
- Reduction 150 Mechanical Steering Systems
- Power Boats with engine up to 150HP
- Power Assisted Stern Drive Boars with maximum wheel diameter 16”
- Compatible with Dometic® / Seastar® part number SSC62 and Ultraflex® part number M-66
| MFR Part # | Item Description |
| SC-16-06 | Easy Connect - Steering Cable (6 feet) |
| SC-16-07 | Easy Connect - Steering Cable (7 feet) |
| SC-16-08 | Easy Connect - Steering Cable (8 feet) |
| SC-16-09 | Easy Connect - Steering Cable (9 feet) |
| SC-16-10 | Easy Connect - Steering Cable (10 feet) |
| SC-16-11 | Easy Connect - Steering Cable (11 feet) |
| SC-16-12 | Easy Connect - Steering Cable (12 feet) |
| SC-16-13 | Easy Connect - Steering Cable (13 feet) |
| SC-16-14 | Easy Connect - Steering Cable (14 feet) |
| SC-16-15 | Easy Connect - Steering Cable (15 feet) |
| SC-16-16 | Easy Connect - Steering Cable (16 feet) |
| SC-16-17 | Easy Connect - Steering Cable (17 feet) |
| SC-16-18 | Easy Connect - Steering Cable (18 feet) |
| SC-16-20 | Easy Connect - Steering Cable ( 20 feet) |
| SC-16-24 | Easy Connect - Steering Cable (24 feet) |
