Karver Rope Lashing Block - Single KBO1

Karver Rope Lashing Blocks - Singles (KBO1 to KBO50)

Karver
SKU:
PF830030-PF810030
$36.30 - $1,608.13
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Please note that there is a 7-14 days shipping timeframe for these products.

SAIL LIGHTER!

The rope shackle will never seize due to the load or rust over the years.

KBO lashing blocks have the best size to weight ratio on the market.

KBO rope lashing makes fitting easier and quicker than standard shackles.

FAST ATTACHMENT
The rope shackle is included with the block up to KBO30.

SIMPLICITY
Easy fitting from the lashing guide and rope shackle attachment simplifies the use of the KBO block.

LIGHT WEIGHT
The design and material optimisation make the block extremely light.

PERFORMANCE
The KBO block features a two stage bearing system from the KBO8 to enhance low friction.

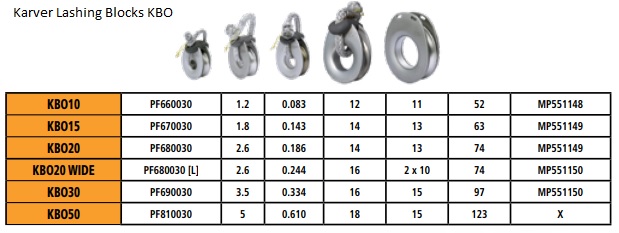

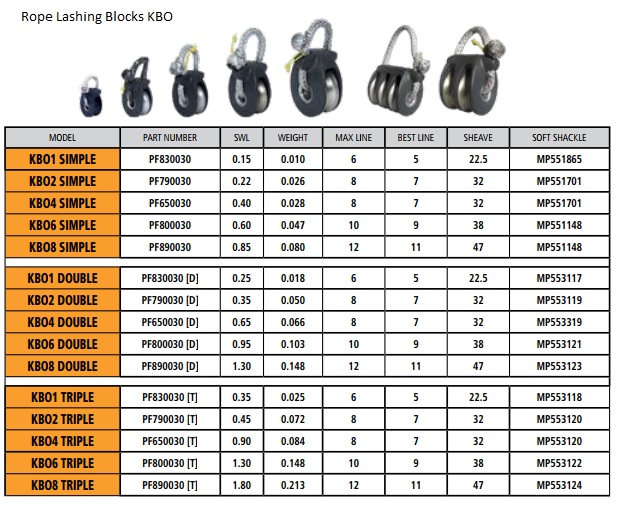

KBO RANGE – SINGLE
MODEL REFERENCE WORKING
LOAD (kg)		 BREAKING
LOAD (kg)		 WEIGHT (g) MAX.LINE
LINE DIA. (mm)		 SHEAVE DIA. (mm) CORRESPONDING ROPE SHACKLE REFERENCE CORRESPONDING GUIDE
REFERENCE
KBO1 PF830030 150 300 10 6 22.5 MP551865 X
KBO2 PF790030 220 440 26 8 32 MP551701 X
KBO4 PF650030 400 800 27 8 32 MP551701 X
KBO6 PF800030 600 1200 46 10 38 MP551148 X
KBO8 PF890030 850 1700 80 12 47 MP551148 X
KBO10 PF660030 1200 2400 83 12 52 MP551148 PL662127

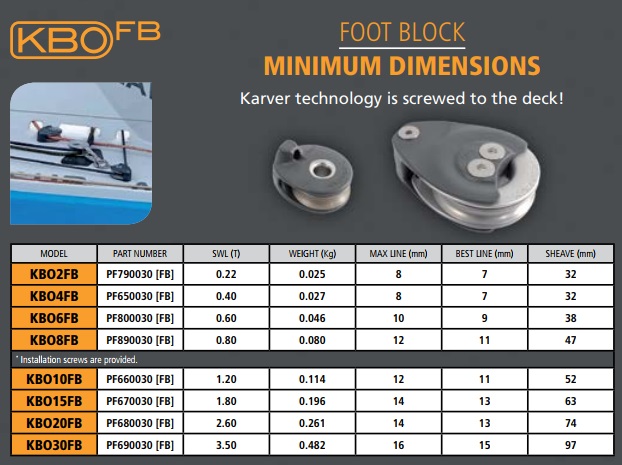

KBO10 FB PF660030 FB 1200     12 52
KBO15 PF670030 1800 3600 138 14 63 MP551149 PL672254
KBO15 FB PF670030 FB 1800     14 63
KBO20 PF680030 2600 5200 186 14 74 MP551149 PL682261
KBO20 FB PF680030 FB 2600     14 74
KBO30 PF690030 3500 7000 334 16 97 MP551150 PL692262
KBO30 FB PF690030 FB 3500     16 97
KBO50 PF810030 5000 10000 610 18 123 X X
