Harken Dinghy Jib Lead w/Cam Port
Harken
$346.82
(No reviews yet)
Write a Review
Harken

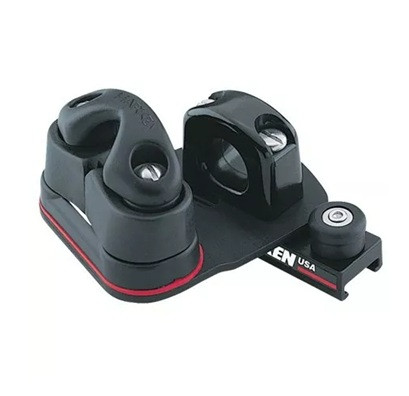

Harken Dinghy Jib Lead w/Cam Port
These easy-to-adjust cars combine a spring-loaded pinstop with precise track spacing. Use on dinghies and small sport boats with jibs up to 13 m² (140 ft²). The 452 bullseye lead has a controlled pivot angle so the cleat is always within easy reach.
Part no. 452P: 16mm Pinstop Car - Swivel, Cam Cleat, Port
Specifications
- Height (in) 2 7/16 in
- Length (in) 3 1/8 in
- Length (mm) 79 mm
- Width (mm) 87 mm
- Width (in) 3 7/16 in
- Weight (g) 194 g
- Weight (oz) 7 oz
- Maximum working load (kg) 113 kg
- Maximum working load (lb) 250 lb
- Breaking load (kg) 227 kg
- Breaking load (lb) 500 lb
- Height (mm) 62 mm
- Use with track/rail 453
