This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.
The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air. Harken V blocks have aluminum sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.

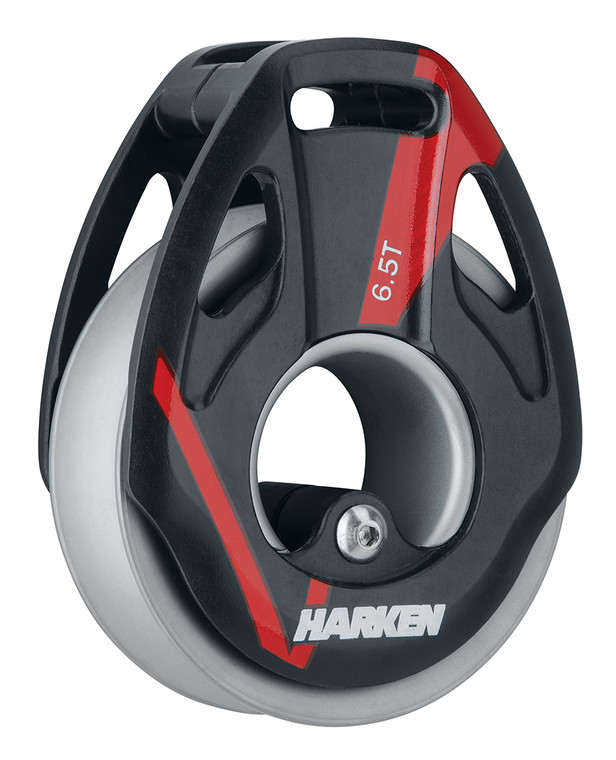

Part no. 3297AL: 6.5T Aluminum V™ Block
Specifications
- Sheave Ø (mm) 82 mm
- Sheave Ø (in) 3 1/4 in
- Length (mm) 107 mm
- Length (in) 4 3/16 in
- Weight (g) 400 g
- Weight (oz) 14.11 oz
- Maximum line Ø (mm) 16 mm
- Maximum line Ø (in) 5/8 in
- Maximum working load (kg) 6500 kg
- Maximum working load (lb) 14300 lb
- Breaking load (kg) 13000 kg
- Breaking load (lb) 28600 lb
- Note: Loop not included
