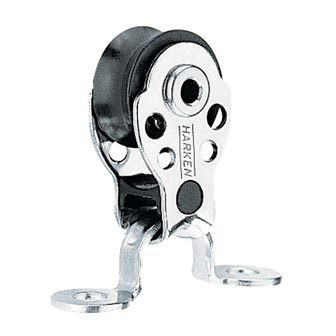

Harken 16mm Anti-Capsize Block (442)

Harken 16mm Anti-Capsize Block

Harken
SKU:
HK442
|
UPC:
97653073628
$52.13
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

The 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 442 uses a spacer to keep the line in the sheave during intermittent loading.

Part no. 442: 16mm Eyestrap Block

Specifications

  • Sheave Ø (mm) 16 mm
  • Sheave Ø (in) 5/8 in
  • Length (mm) 35 mm
  • Length (in) 1 3/8 in
  • Weight (g) 12 g
  • Weight (oz) .44 oz
  • Maximum line Ø (mm) 5 mm
  • Maximum line Ø (in) 7/32 in
  • Fasteners (mm) 4 RH mm
  • Fasteners (in) #8 RH in
  • Mounting hole spacing (mm) 27 mm
  • Mounting hole spacing (in) 1 1/16 in
  • Maximum working load (kg) 113 kg
  • Maximum working load (lb) 250 lb
  • Breaking load (kg) 544 kg
  • Breaking load (lb) 1200 lb
