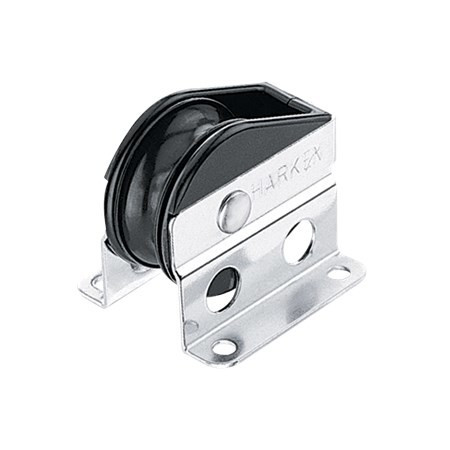

Harken Upright Bullet Lead Block for Wire (108)

Harken Upright Bullet Lead Block for Wire

Harken
SKU:
HK108
|
UPC:
97653003182
$69.67
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Wire Bullet blocks use roller bearings to carry higher loads and feature hardcoat-anodized PTFE impregnated aluminum sheaves for strength and corrosion resistance.

Part No. 108: 29mm Wire Upright Lead Bullet Block

Specifications

  • Sheave Ø (mm) 29 mm
  • Sheave Ø (in) 1 1/8 in
  • Length (mm) 38 mm
  • Length (in) 1 1/2 in
  • Weight (g) 43 g
  • Weight (oz) 1.5 oz
  • Maximum line Ø (mm) 8 mm
  • Maximum line Ø (in) 5/16 in
  • Fasteners (mm) 5 RH mm
  • Fasteners (in) #10 RH in
  • Maximum working load (kg) 227 kg
  • Maximum working load (lb) 500 lb
  • Breaking load (kg) 907 kg
  • Breaking load (lb) 2000 lb
