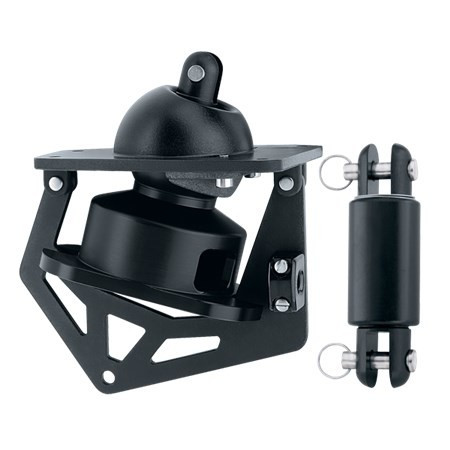

Harken Small Boat Underdeck Furling System (477)

Harken Small Boat Underdeck Furling System

Harken
SKU:
HK477
|
UPC:
97653234593
$2,740.53
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

Small Boat underdeck furling units are ideal for sportboats and daysailers from 4.8 m to 9 m (16 to 30 ft). The drum is located beneath the deck, lowering the tack height for maximized sail area. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.

Part no. 477:  Underdeck Furling System - 3mm Luff Wire

Specifications

  • Pin-to-pin length (mm) 156 mm
  • Pin-to-pin length (in) 6 1/8 in
  • Drum Ø (mm) 79 mm
  • Drum Ø (in) 3 1/8 in
  • Minimum line Ø (mm) 3 mm
  • Minimum line Ø (in) 1/8 in
  • Maximum line Ø (mm) 4 mm
  • Maximum line Ø (in) 5/32 in
  • Jaw width (mm) 8 mm
  • Jaw width (in) 5/16 in
  • Maximum luff wire Ø (mm) 3 mm
  • Maximum luff wire Ø (in) 1/8 in
  • Clevis pin Ø (mm) 6.4 mm
  • Clevis pin Ø (in) 1/4 in
  • Weight (g) 661 g
  • Weight (oz) 23.3 oz
  • Maximum working load (kg) 431 kg
  • Maximum working load (lb) 950 lb
  • Footnote Includes drum and upper swivel. Does not include hoistable swivel.
