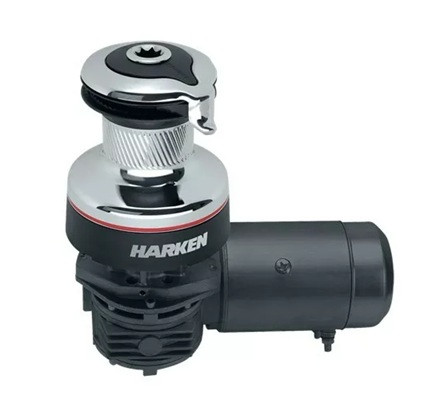

Harken Radial 2 Speed Electric ST Chrome Winch Horizontal 12 Volt #46

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear.

The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets.

Efficient design allows smaller motor size. Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box.

Part no. 46.2STEC12H: 46 Electric Self-Tailing Radial Chrome Winch - 2 Speed, 12V, Horizontal

Specifications

• Height (mm) 201 mm
• Height (in) 7 15/16 in
• Minimum line Ø (mm) 8 mm
• Minimum line Ø (in) 5/16 in
• Maximum line Ø (mm) 14 mm
• Maximum line Ø (in) 9/16 in
• Fasteners (mm) M8 SH mm
• Fasteners (in) 5/16 SH in
• Weight (kg) 7.8 kg
• Number of fasteners 5
• Weight (lb) 17.2 lb
• E (mm) 43 mm
• E (in) 1 3/4 in
• F (mm) 155 mm
• F (in) 6 1/8 in
• Configuration Self-tailing
• Speed 2
• Drum Ø (mm) 100 mm
• Drum Ø (in) 3 7/8 in
• Base Ø (mm) 184 mm
• Base Ø (in) 7 1/4 in
• Weight of Winch and Motor (kg) 17.5
• Weight of Winch and Motor (lb) 38.5
• Motor weight (kg) 9.7 kg
• Motor weight (lb) 21.3 lb
• Line entry height (mm) 90 mm
• Line entry height (in) 3 9/16 in
• Fastener circle (in) 5 7/8 in
• Fastener circle (mm) 150 mm
• Gear ratio - 1 2.30
• Gear ratio - 2 9.17
• Power ratio - 1 11.70
• Power ratio - 2 46.50
• Voltage (V) 12
• G (mm) 227 mm
• G (in) 8 7/8 in
• Material Chrome
• Available power Electric horizontal 12V
