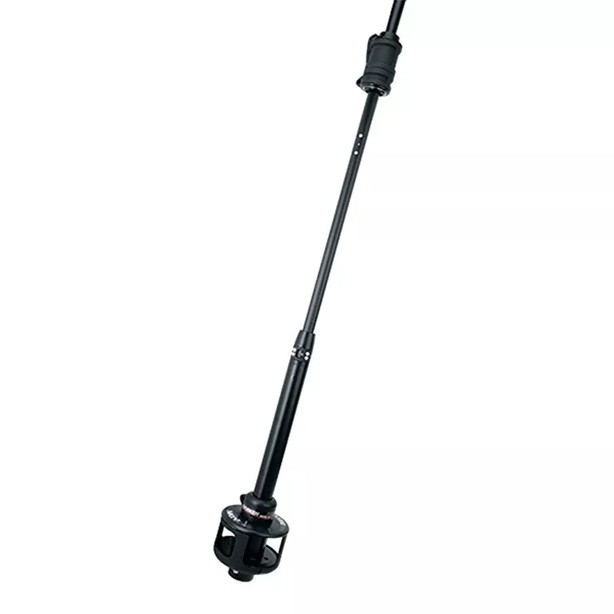

Harken MKIV Unit 2 Furling System w/o Toggle Assembly (7412.10)

Harken MKIV Unit 2 Furling System w/o Toggle Assembly

Harken
SKU:
HK7412.10 Black
|
UPC:
97653183167
$10,582.60
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

MKIV furling systems are strong, lightweight and aerodynamic, with the performance and features Harken® is known for. Longevity, ease of use, and simplicity of installation are crucial components of the design.

Part no. 7412.10: Unit 2 MKIV Jib Furling System

Specifications

  • A (mm) 143 mm
  • A (in) 5 5/8 in
  • B (mm) 231 mm
  • B (in) 9 1/8 in
  • C (mm) 66 mm
  • C (in) 2 9/16 in
  • D (mm) 208 mm
  • D (in) 8 3/16 in
  • E (mm) 97 mm
  • E (in) 3 13/16 in
  • Wire Ø (1 x 19 SS) (mm) 10 mm
  • Wire Ø (1 x 19 SS) (in) 5/16 in
  • Rod Ø (mm) 9.53 mm
  • Rod Ø (dash) -22
  • Clevis pin Ø (mm) 19.1 mm
  • Clevis pin Ø (in) 5/8 in
  • Standard headstay length (m) 18.38 m
  • Standard headstay length (ft in) 60'4" ft in
  • Maximum headstay length (m) 20.51 m
  • Maximum headstay length (ft in) 67' 4" ft in
  • F maximum (mm) 1314 mm
  • F maximum (in) 51 3/4 in
  • F minimum (mm) 1187 mm
  • F minimum (in) 46 3/4 in
  • G maximum (mm) 384 mm
  • G maximum (in) 15 1/8 in
  • G minimum (mm) 306 mm
  • G minimum (in) 12 1/16 in
  • H maximum (mm) 348 mm
  • H maximum (in) 13 15/16 in
  • H minimum (mm) 276 mm
  • H minimum (in) 10 7/8 in
  • I maximum (mm) 164 mm
  • I maximum (in) 6 7/16 in
  • I minimum (mm) 85 mm
  • I minimum (in) 3 3/8 in
  • J (mm) 32 mm
  • J (in) 1 1/4 in
  • K (mm) 36 mm
  • K (in) 1 3/8 in
  • Extrusion length (m) 2.13 m
  • Extrusion length (ft in) 7' ft in
  • Luff tape size (mm) 5 mm
  • Luff tape size (in) #6 (6/32) in
