Part Number 461

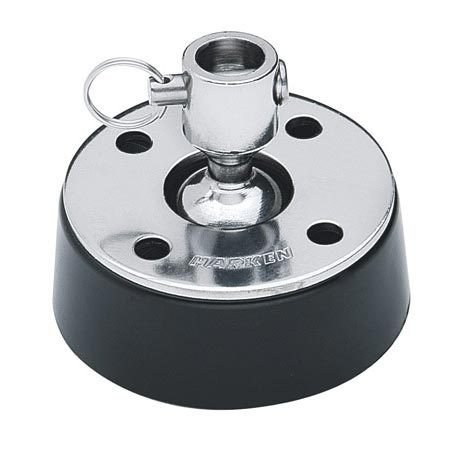

Harken Hi-Load Ball/Socket Stand-up Base for 1/4 Pin

Harken
SKU:
HK461
|
UPC:
97653174912
$162.52
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Stand-up bases allow a wide variety of blocks to be held upright, swivel freely, or pivot so lines have a fairlead under load. The ball-and-socket design lets blocks articulate up to 45 degrees and swivel freely. The 460 and 461 bases (high-load versions of the 010 and 029) have stainless steel reinforcement plates to handle the high load capacities of 57 mm and 75 mm Carbo blocks.

Part no. 461: 1mm Ball-and-Socket Base - Swivel

Specifications

  • Height (mm) 51 mm
  • Height (in) 2 in
  • Weight (g) 128 g
  • Weight (oz) 4.5 oz
  • Base Ø (mm) 54 mm
  • Base Ø (in) 2 1/8 in
  • Inside socket Ø (in) 7/16 in
  • Inside socket Ø (mm) 12 mm
  • Pin Ø (mm) 6 mm
  • Pin Ø (in) 1/4 in
  • Fasteners (mm) 5 FH mm
  • Fasteners (in) #10 FH in
  • Maximum working load (kg) 454 kg
  • Maximum working load (lb) 1000 lb
  • Breaking load (kg) 1134 kg
  • Breaking load (lb) 2500 lb
  • Use with blocks 75 mm Carbo
