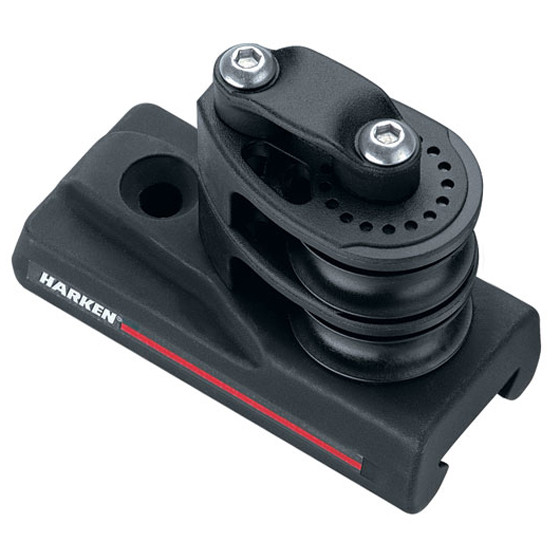

Harken BB 32mm Double Sheave End Controls w/ Dead End for High-beam Track (E3250HB)

Harken BB 32mm Double Sheave End Controls w/ Dead End for High-beam Track (Pair)

Harken
SKU:
E3250HB
|
UPC:
97653234333
$891.67
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems. Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings. Use E3250HB double-sheave end controls for cabintop travelers with cars using 3:1 or 4:1 purchases. Contact Harken® to order special length track with mounting holes for E3250HB end controls.

Part no. E3250HB: 32mm ESP High-Beam End Control - Double Sheave, Set of 2

Specifications

  • Length (in) 6 1/8 in
  • Sheave Ø (mm) 57 mm
  • Sheave Ø (in) 2 1/4 in
  • Length (mm) 155 mm
  • Width (mm) 57 mm
  • Width (in) 2 1/4 in
  • Maximum line Ø (mm) 10 mm
  • Maximum line Ø (in) 3/8 in
  • Maximum working load (kg) 318 kg
  • Maximum working load (lb) 700 lb
  • Breaking load (lb) 1400 lb
  • Breaking load (kg) 635 kg
  • Height above track (mm) 25 mm
  • Height above track (in) 1 in
  • Weight for pair (g) 1547 g
  • Weight for pair (oz) 54.6 oz
  • Purchase 3:1 / 4:1
