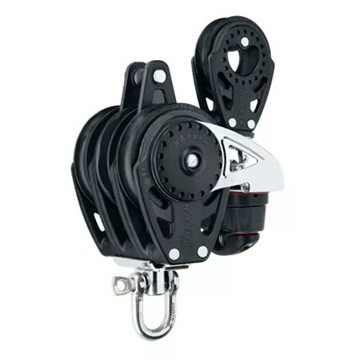

Harken 75mm Triple Carbo Ratchamatic w/ Cam, Becket & 57mm Block (2687)

Harken 75mm Triple Carbo Ratchamatic w/ Cam, Becket & 57mm Block

Harken
SKU:
HK2687
|
UPC:
97653144625
$1,163.49
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.

Part no. 2687: 75mm Carbo Air Triple Ratchamatic® Block - Swivel, Becket, Cam Cleat, 57 mm Block

Specifications

  • Sheave Ø (mm) 75 mm
  • Sheave Ø (in) 2 15/16 in
  • Length (mm) 165 mm
  • Length (in) 6 1/2 in
  • Weight (g) 984 g
  • Weight (oz) 34.7 oz
  • Shackle pin Ø (mm) 8 mm
  • Shackle pin Ø (in) 5/16 in
  • Maximum line Ø (mm) 12 mm
  • Maximum line Ø (in) 7/16 in
  • Maximum working load (kg) 816 kg
  • Maximum working load (lb) 1800 lb
  • Breaking load (kg) 2041 kg
  • Breaking load (lb) 4500 lb
  • Holding power 15:1
  • Note: Maximum working loads and breaking loads for blocks based on cam strengths.
