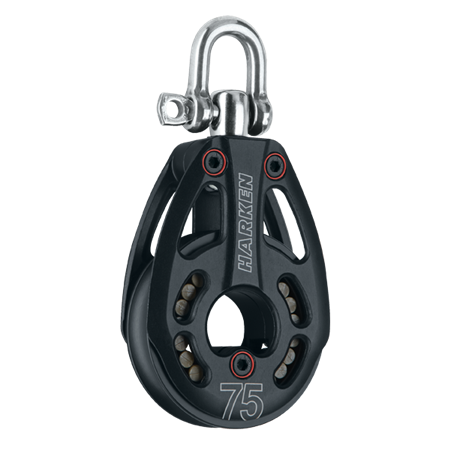

Harken 75mm Low Load Block (3243)

Harken 75mm Low Load Block

Harken
SKU:
HK3243
|
UPC:
97653264743
$910.86
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action: mainsheet, runner, halyard, and spinnaker systems. A center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Shackle blocks lock in two directions or swivel to keep line from twisting. The low-load block has a red isolator. It uses Delrin® ball bearings, with a 17-4 PH stainless headpost and 316 stainless steel shackles.

Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.

Part no. 3243: 75mm Aluminum Low-Load Block - Swivel

Specifications

  • Sheave Ø (mm) 75 mm
  • Sheave Ø (in) 2 15/16 in
  • Length (mm) 129 mm
  • Length (in) 5 1/8 in
  • Weight (g) 335 g
  • Weight (oz) 11.82 oz
  • Shackle pin Ø (mm) 8 mm
  • Shackle pin Ø (in) 5/16 in
  • Maximum line Ø (mm) 14 mm
  • Maximum line Ø (in) 9/16 in
  • Maximum working load (kg) 1361 kg
  • Maximum working load (lb) 3000 lb
  • Breaking load (kg) 2722 kg
  • Breaking load (lb) 6000 lb
