Small Boat Flip-Flop blocks pivot around the line axis to keep the line close to the deck. Hinged construction allows for various lead angles.

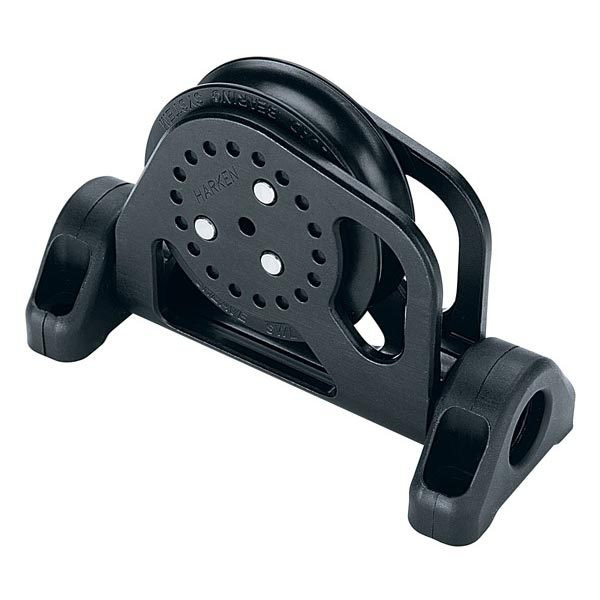

Part no. 2678: 75mm Carbo Air Flip-Flop SB Block
Specifications
- Sheave Ø (mm) 75 mm
- Sheave Ø (in) 3 in
- Length (mm) 143 mm
- Length (in) 5 5/8 in
- Height (mm) 95 mm
- Height (in) 3 3/4 in
- Weight (g) 275 g
- Weight (oz) 9.7 oz
- Maximum line Ø (mm) 14 mm
- Maximum line Ø (in) 9/16 in
- Maximum working load (kg) 340 kg
- Maximum working load (lb) 750 lb
- Breaking load (kg) 1100 kg
- Breaking load (lb) 2426 lb
- Width (in) 2 1/2 in
- Width (mm) 64 mm
