Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

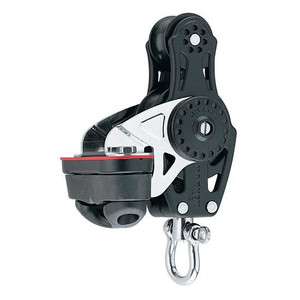

Part no. 2696: 75mm Carbo Air Fiddle Ratchet Block - Swivel, Cam Cleat
Specifications
- Sheave Ø (mm) 75 mm
- Sheave Ø (in) 2 15/16 in
- Length (mm) 157 mm
- Length (in) 6 3/16 in
- Weight (g) 456 g
- Weight (oz) 16.1 oz
- Shackle pin Ø (mm) 6 mm
- Shackle pin Ø (in) 1/4 in
- Maximum line Ø (mm) 12 mm
- Maximum line Ø (in) 1/2 in
- Maximum working load (kg) 408 kg
- Maximum working load (lb) 900 lb
- Breaking load (kg) 1020 kg
- Breaking load (lb) 2250 lb
- Holding power 15:1
- Note: Maximum working loads and breaking loads for blocks based on cam strengths.
