Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to our popular Harken Big Boat blocks, these small, compact blocks have very high working loads for safe, easy trimming.

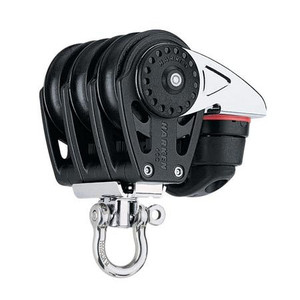

Part no. 2648: 40mm Carbo Air Triple Block - Swivel, Becket, Cam Cleat
Specifications
- Sheave Ø (mm) 40 mm
- Sheave Ø (in) 1 9/16 in
- Length (mm) 110 mm
- Length (in) 4 5/16 in
- Weight (g) 235 g
- Weight (oz) 8.3 oz
- Maximum line Ø (mm) 6 mm
- Maximum line Ø (in) 1/4 in
- Maximum working load (kg) 408 kg
- Maximum working load (lb) 900 lb
- Breaking load (lb) 1800 lb
- Breaking load (kg) 816 kg
- Shackle pin Ø (mm) 5 mm
- Shackle pin Ø (in) 3/16 in
- Note: Maximum working loads and breaking loads for blocks based on cam strengths.
