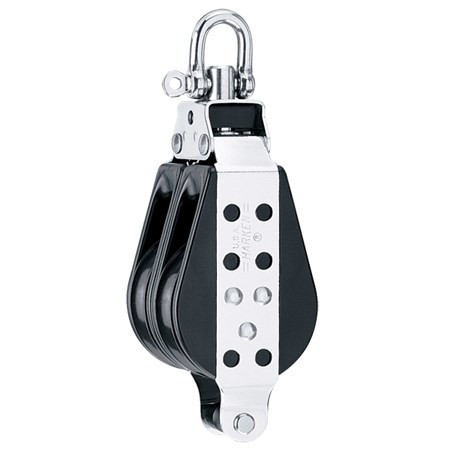

Harken 3.00 Midrange Double w/ Becket
Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Part no. 1545: 76mm Double Block - Becket
Specifications
- Sheave Ø (mm) 76 mm
- Sheave Ø (in) 3 in
- Length (mm) 216 mm
- Length (in) 8 1/2 in
- Weight (g) 751 g
- Weight (oz) 26.5 oz
- Shackle pin Ø (mm) 8 mm
- Shackle pin Ø (in) 5/16 in
- Maximum line Ø (mm) 14 mm
- Maximum line Ø (in) 9/16 in
- Maximum working load (kg) 1270 kg
- Maximum working load (lb) 2800 lb
- Breaking load (kg) 3175 kg
- Breaking load (lb) 7000 lb
