Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.

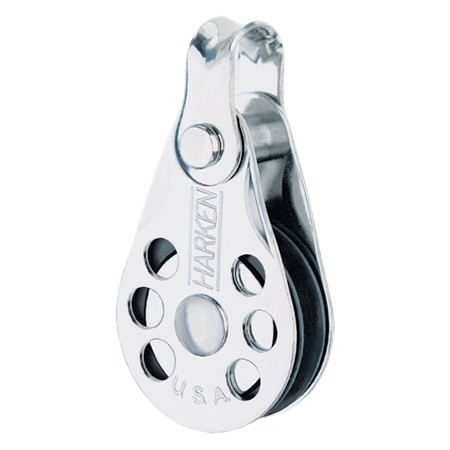

Part no. 304: 38mm Wire Block
Specifications
- Sheave Ø (mm) 38 mm
- Sheave Ø (in) 1 1/2 in
- Weight (g) 78 g
- Weight (oz) 2.75 oz
- Shackle pin Ø (mm) 6 mm
- Shackle pin Ø (in) 1/4 in
- Maximum wire Ø (in) 1/8 in
- Maximum wire Ø (mm) 3 mm
- Maximum line Ø (mm) 5 mm
- Maximum line Ø (in) 3/16 in
- Maximum working load (kg) 680 kg
- Maximum working load (lb) 1500 lb
- Breaking load (kg) 1361 kg
- Breaking load (lb) 3000 lb
