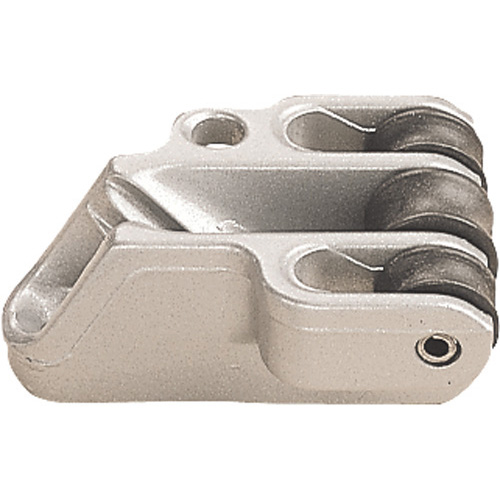

CL247 COMPACT TWIN SHEAVE CLEAT
Use the CL247 for a 6:1 ratio downhaul. Fits any mast extension.
CL247 is manufactured from high pressure die-cast aluminium to give a light weight yet durable cleat. The rollers are manufactured from a composite plastic designed to withstand coral sand. It can be fitted onto any mast extension, or tube, using rivets or screws.
SPECIFICATIONS
- Rope Diameter: 3 - 5mm (1/8 - 3/16")
- Material: Aluminium & Nylon
- Hole Centres: 31mm (1 1/4")
- Length: 53mm (2 1/16")
- Width: 40mm (1 9/16")
- Height: 24mm (1")
- Bolt Size: M5 (#10-24. 3/16")
- Screw Size: 4.8 (No 10)
- Weight: 40gms (1.4oz)
