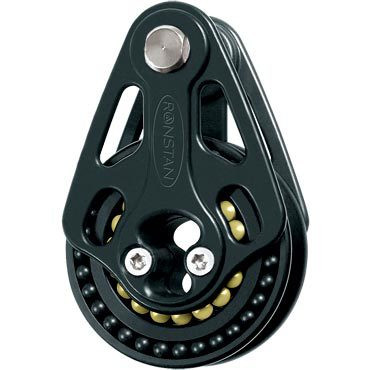

Ronstan Series 60 Orbit Block, Single Halyard (RF69108)

Ronstan Series 60 Orbit Block, Single Halyard

Ronstan
SKU:
RF69108
|
UPC:
9316800218592
$529.34
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF69108: SERIES 60 HALYARD ORBIT BLOCK™
Single sheave halyard block with screw pin head

FEATURES

  • The highest strength-to-weight ratio.
  • Minimal friction loss, especially when working at high loads.
  • Totally reliable and trouble free performance.
  • Simplicity of design and construction to facilitate maintenance and servicing.
  • Elegant, functional styling and finish.
  • Removable pin.
  • Bushed to 12mm (1/2") diameter

SPECIFICATIONS

  • Sheave diameter (mm) 60
  • B.L. (kg) 4000
  • M.W.L. (kg) 1800
  • Max. Rope diameter (mm) 12
  • Weight (g) 160
  • Pin Ø (mm) 9*
  • Notes: Pin bushed to 12mm (1/2") diameter.

PRODUCT INFORMATION

Orbit Blocks™ are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners.

The Orbit sheave has captive acetal or Torlon® ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.

MATERIALS

  • Fully machined Alloy cheek plates
  • Alloy sheaves with captive ball races
  • Torlon® needle rollers
  • Carbon black Acetal ball bearings
