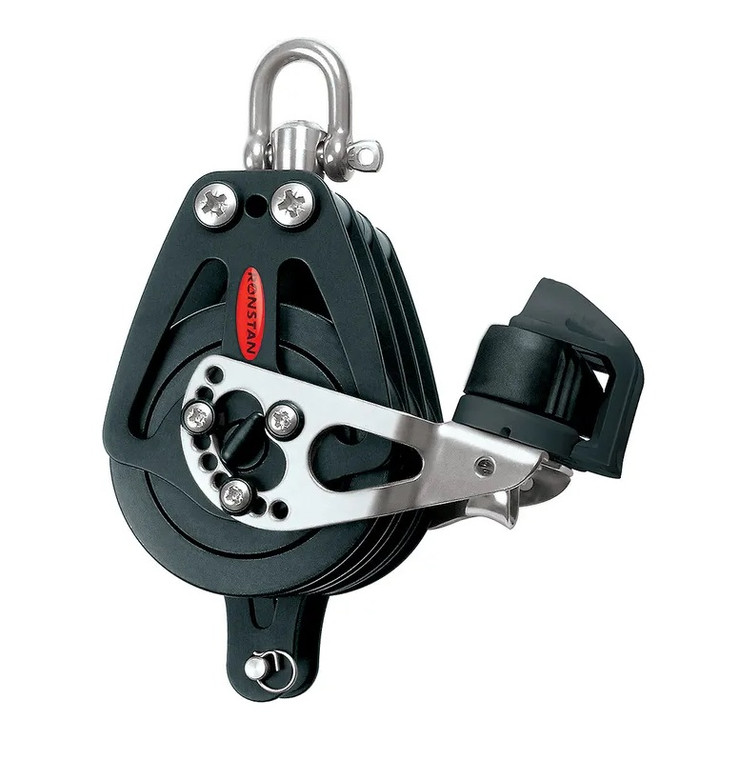

Ronstan Series 75 Ratchet, Triple, Becket, Cleat (RF72330)

Ronstan Series 75 Ratchet, Triple, Becket, Cleat

Ronstan
SKU:
RF72330
|
UPC:
9316800265459
$885.82
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF72330: SERIES 75 RATCHET, TRIPLE BLOCK WITH BECKETE & CLEAT
Triple ratchet block with becket, cleat

FEATURES

  • Low friction, 2-stage ball bearing system
  • High static and dynamic load capacity
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Lockable swivelling head post
  • High strength forged shackle
  • Multi-position cleat arm

SPECIFICATIONS

  • Sheave diameter (mm) 75
  • B.L. (kg) 2000
  • M.W.L. (kg) 685
  • Max. Rope diameter (mm) 10
  • Weight (g) 790
  • Pin Ø (mm) 7
  • Suits Clevis Pin RF267, RF274
  • Notes: Line load through cleat not to exceed 175kg (385lb).

PRODUCT INFORMATION

  • Removable becket pins allow lines to be spliced prior to fitting.
  • Saddle on under side of cleat can be used as a becket take off point for the creation of a powerful 6:1 purchase system.
  • A single block can be attached to the saddle to increase this to a 7:1 purchase system.

APPLICATIONS

  • Two-speed systems: Mainsheets on sportsboats and keelboats to 12m (40ft)

MATERIALS

  • Ball bearings: acetal
  • Sheaves: UV stabilised acetal (BB), alloy (ratchet)
  • Cheeks & ratchet sheaves: Anodised aluminium
  • Ratchet pawl: Torlon®
