Ronstan Series 125 Orbit Lashing Block
Ronstan
$2,305.67
(No reviews yet)
Write a Review
Ronstan
Ronstan Series 125 Orbit Lashing Block

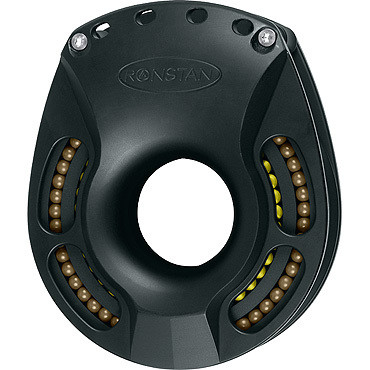

RF129109A: Series 125 Lashing Orbit Block™
Single sheave lashing block
FEATURES
- The highest strength-to-weight ratio.
- Minimal friction loss, especially when working at high loads.
- Totally reliable and trouble free performance.
- Simplicity of design and construction to facilitate maintenance and servicing.
- Elegant, functional styling and finish.
SPECIFICATIONS
- B.L. (kg) 19500
- M.W.L. (kg) 6500
- Max. Rope diameter (mm) 18
- Weight (g) 930
- Cable Construction 7x7
- B.L. (kN) 8.1
PRODUCT INFORMATION
- Orbit blocks™ are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners.
- The Orbit sheave has captive acetal or Torlon® ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon® needles – achieving a substantially higher strength-to-weight ratio.
MATERIALS
- Fully machined Alloy cheek plates.
- Alloy sheaves with captive ball races.
- Torlon® needle rollers.
- Carbon black Acetal ball bearings
- Torlon® ball bearings - Series 100, 125 and 150
