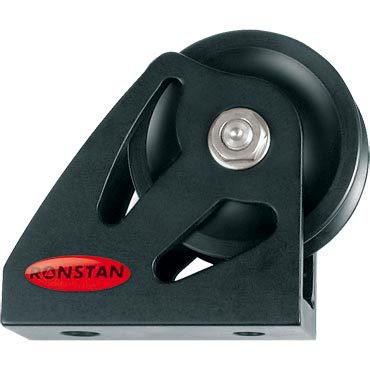

Ronstan Series 60 All Purpose Block, Single Upright Lead (RF61171)

Ronstan Series 60 All Purpose Block, Single Upright Lead

Ronstan
SKU:
RF61171
|
UPC:
9316800298433
$280.55
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF61171: SERIES 60 UPRIGHT LEAD, SINGLE
Upright All Purpose Lead

FEATURES

  • High static and dynamic load capacity
  • Keeps lines close to the deck
  • Cheek cut-outs for easy bearing cleaning and maintenance
  • Blocks can be disassembled for servicing

SPECIFICATIONS

  • Sheave diameter (mm) 60
  • B.L. (kg) 3000
  • M.W.L. (kg) 1000
  • Max. Rope diameter (mm) 14
  • Weight (g) 205
  • Fastener Ø (mm) 8

PRODUCT INFORMATION

  • Ball Bearing models have Torlon® needle rollers for axial loads, and acetal ball bearings for side thrust loads.
  • Blocks can be disassembled for servicing or customisation.

APPLICATIONS

  • Typically used for halyards at the mast base.

MATERIALS

  • U.V. stabilised Acetal sheave
  • Stainless steel hub
  • Alloy housing
