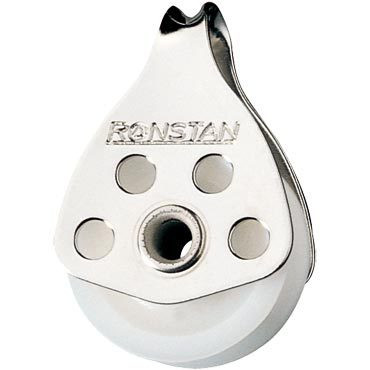

RF280: Series 30 Utility Block, Loop Top
Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.
FEATURES
- Lightweight durable construction
- Economical
- Maintenance free
SPECIFICATIONS
- Sheave Ø: 30 mm
- Max. Rope Ø: 8 mm
- M.W.L.: 300 kg
- B. L.: 600 kg
- Weight: 20 g
- A (mm) 37.0
- B (mm) 26.0
- C (mm) 36.0
- D (mm) 17.5
- E (mm) 38.0
APPLICATIONS
- Vang, cunningham and trapeze retriever systems on dinghies
- Leech line tackles, bunk adjusters etc on larger yachts
MATERIALS
- U.V. stabilised Acetal sheaves
- Grade 316 stainless steel cheeks
